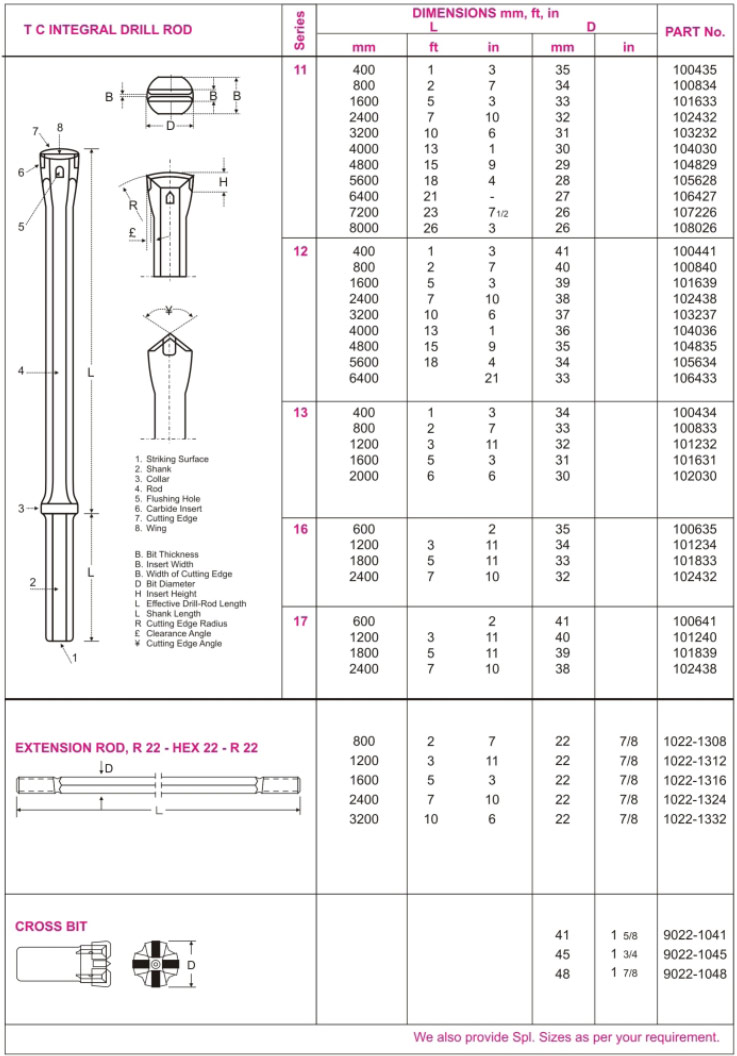

Integral Drill Rods
High-performance integral drill rods forged from premium steel for maximum drilling efficiency. Available in various lengths and thread configurations to match different rock drilling machines.
| Type | Size Range | Thread | Steel Grade |
|---|---|---|---|
| Hex Drill Rods | 19mm - 32mm | Standard | Premium Alloy |
| Round Drill Rods | 25mm - 38mm | Standard | Premium Alloy |
| Tapered Rods | 19mm - 25mm | Taper | High Carbon |

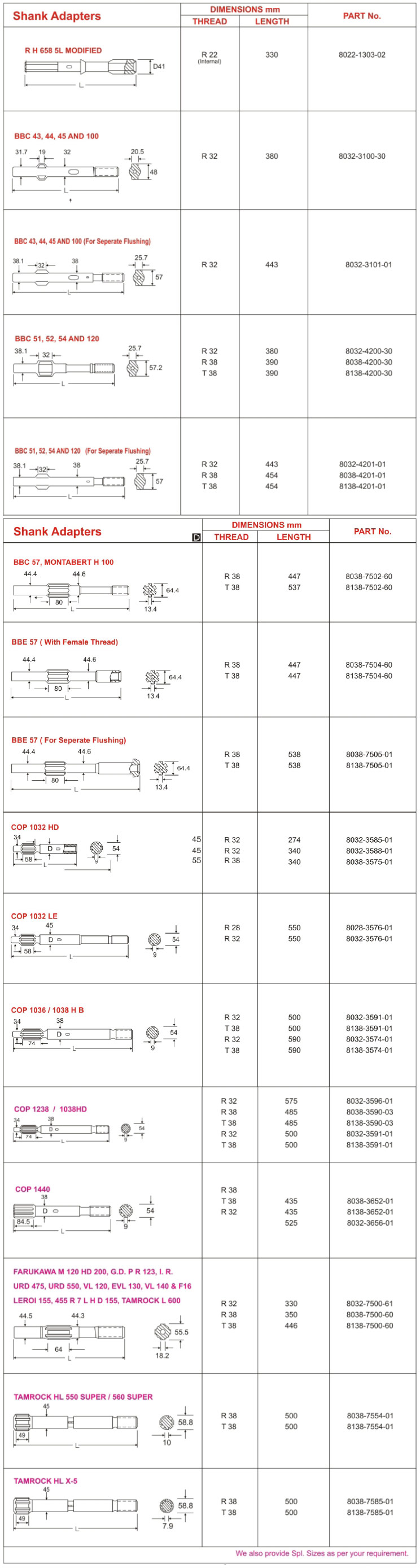

Shank Adapters
Precision-machined shank adapters designed for optimal energy transfer between the rock drill and the drill string. Our adapters ensure reliable connections and extended service life.
| Type | Thread | Application |
|---|---|---|
| COP 1238 | R32 / T38 | Surface Drilling |
| COP 1838 | T38 / T45 | Underground |
| HL 500 | T38 | Bench Drilling |

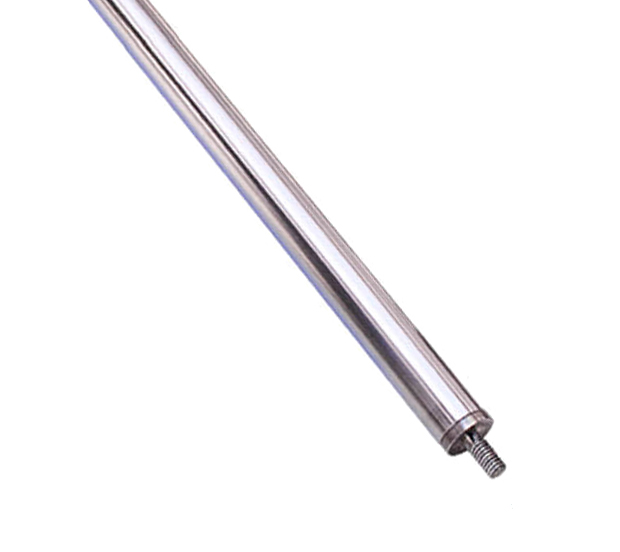

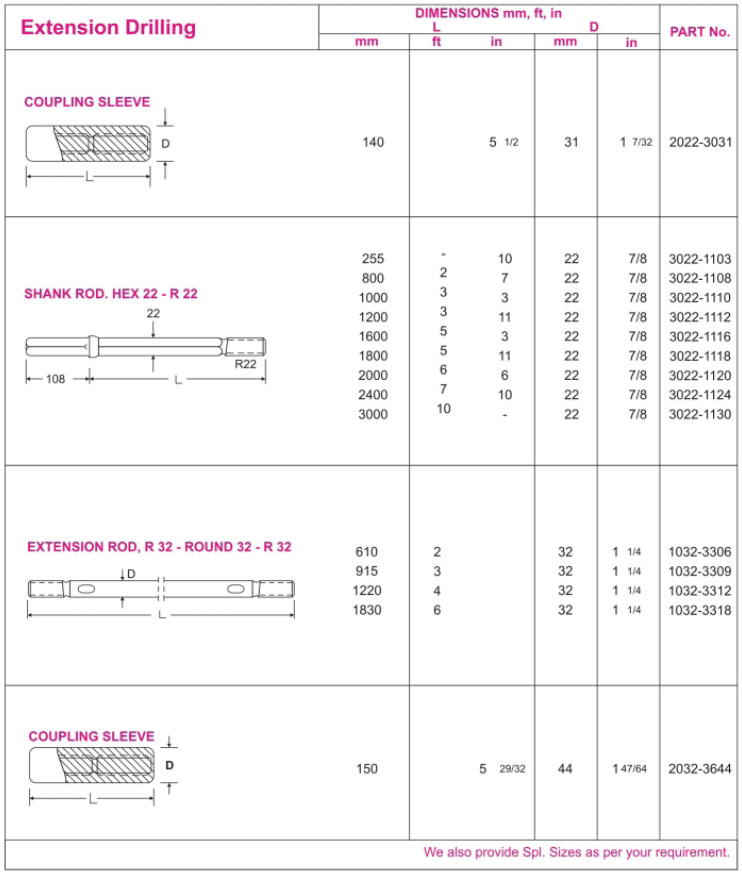

Extension Drilling
Engineered extension rods and MF rods providing reliable performance for deep-hole drilling operations. Available with speed rod and standard thread configurations.
| Type | Thread | Length | Application |
|---|---|---|---|
| Speed Rods | R32 / R38 | 1.2m - 6.1m | Top Hammer |
| MF Rods | T38 / T45 | 1.8m - 6.1m | Bench Drilling |
| Guide Tubes | T38 | 1.2m - 2.4m | Tunneling |

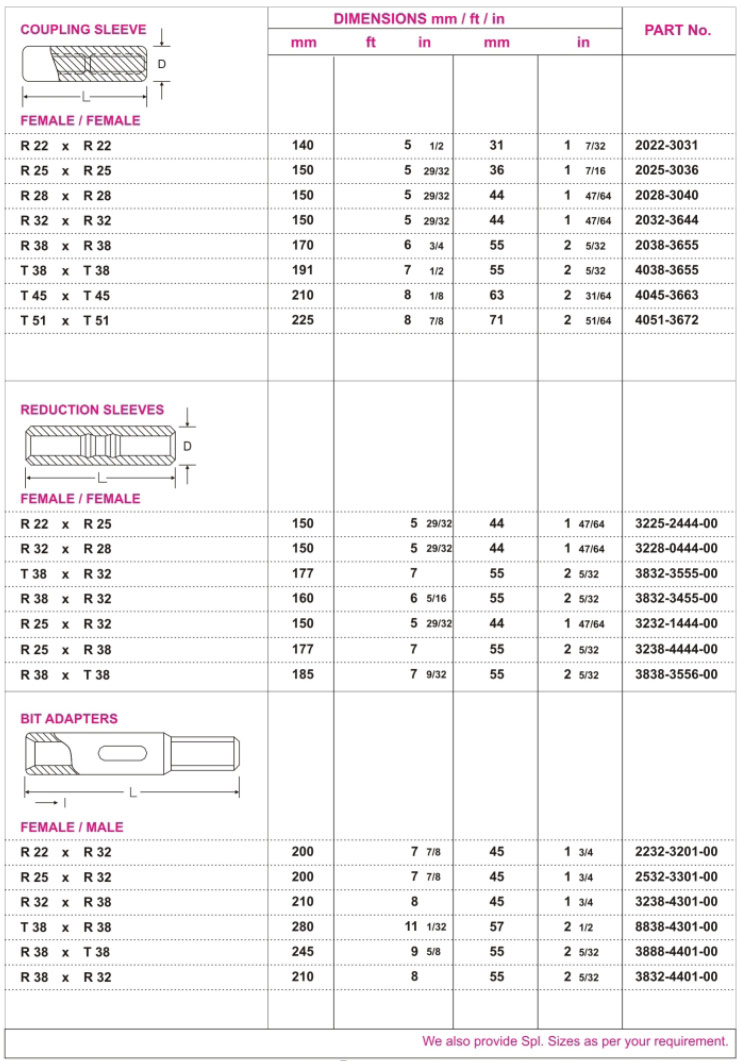

Miscellaneous

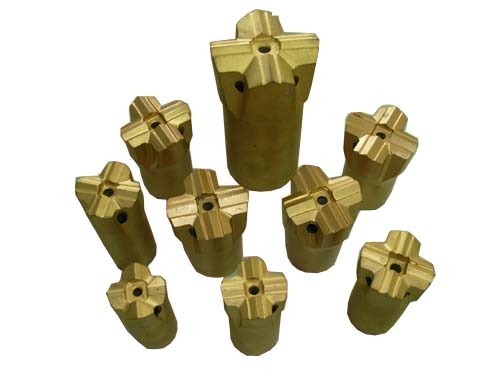

Comprehensive range of coupling sleeves, industrial pins, cross bits, and accessories. All manufactured with precision engineering for reliable underground performance.
| Product | Size | Thread |
|---|---|---|
| Coupling Sleeves | R32 - T51 | Standard |
| Industrial Sleeves | Custom | Custom |
| Cross Bits | 32mm - 64mm | Taper / Thread |
